309-5808 Pedal Control Assembly, Carter Unilateral Breaker Foot Valve
Product Name：Caterpillar Unilateral Breaker Foot Valve Pedal Control Assembly (Part No.: 309-5808)
Applicable Equipment：
- Brand: Caterpillar
- Models: CAT 320GC, 323GC, 330GC, 336GC, 345GC, 349GC series hydraulic excavators
- System: Hydraulic pilot control system (breaker / unilateral operation mode)
1 pc
MOQ
Please send mail or WhatsApp
Price
Product Description
Core Parameters：
- Part Number: 309-5808
- Type: Electronic Pedal Control Assembly / Unilateral Breaker Foot Valve
- Structure & Material: Aluminum alloy base + rubber dustproof bellows + angular position sensor + waterproof wiring harness connector
- Function: Collects pedal travel signals, outputs electrical signals to control the hydraulic pilot circuit, enabling precise control of unilateral breaker operation
Function & Application：
- Precise Breaker Control: As the foot-operated unit for unilateral breakers, it outputs proportional electrical signals based on pedal travel to precisely control breaker impact frequency and force, improving work efficiency.
- Stable Signal Transmission: Built-in high-precision angular sensor converts mechanical input into linear electrical signals, transmitting to the controller for lag-free hydraulic pilot control.
- Durability & Reliability: Impact and corrosion-resistant aluminum alloy base, rubber dustproof bellows adapt to dusty, high-vibration construction environments, and the waterproof harness ensures stable signal transmission.
- OEM Compatibility: Precision manufactured to Caterpillar original standards, perfectly matching mounting interface, electrical pinout, and control logic for direct replacement of the original 309-5808 pedal assembly.
Application Scenario：
Suitable for maintenance and replacement of the breaker operation system in CAT excavators, resolving issues such as unresponsive foot control, weak/no breaker impact, and signal transmission faults. It is a core control component to ensure efficient breaker operation.

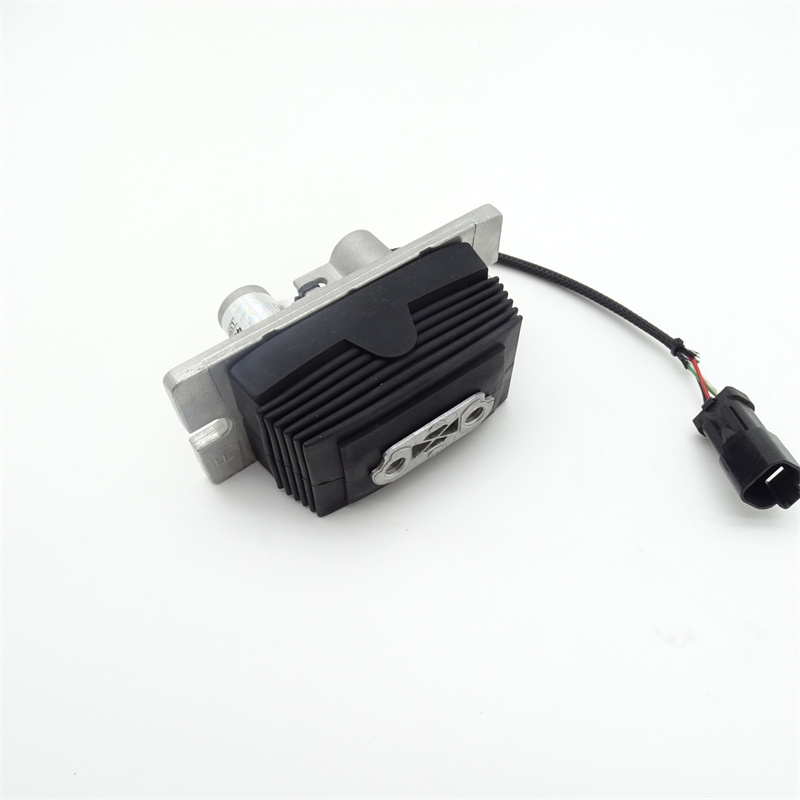

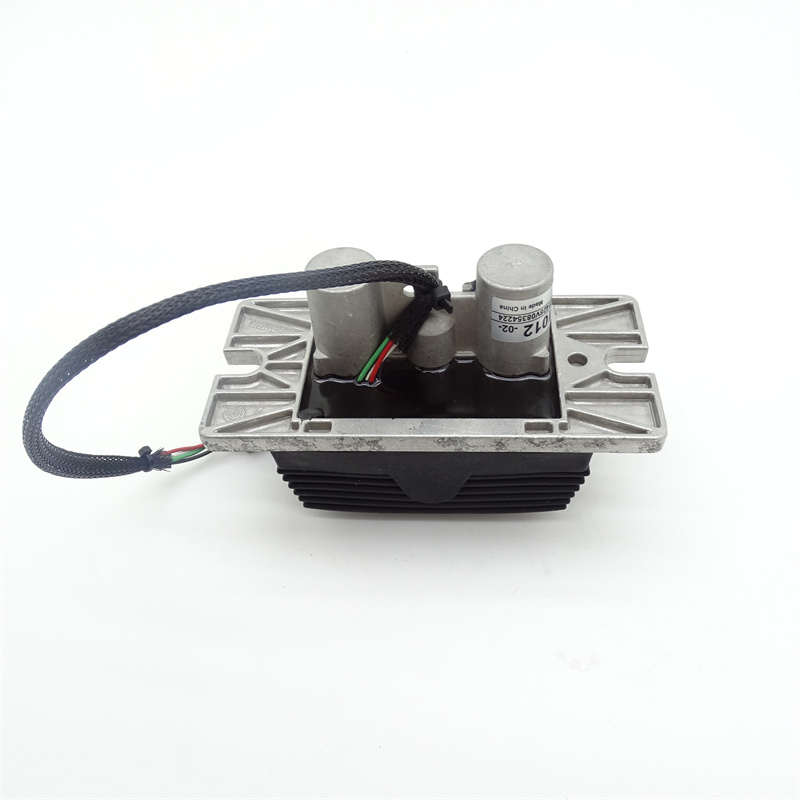

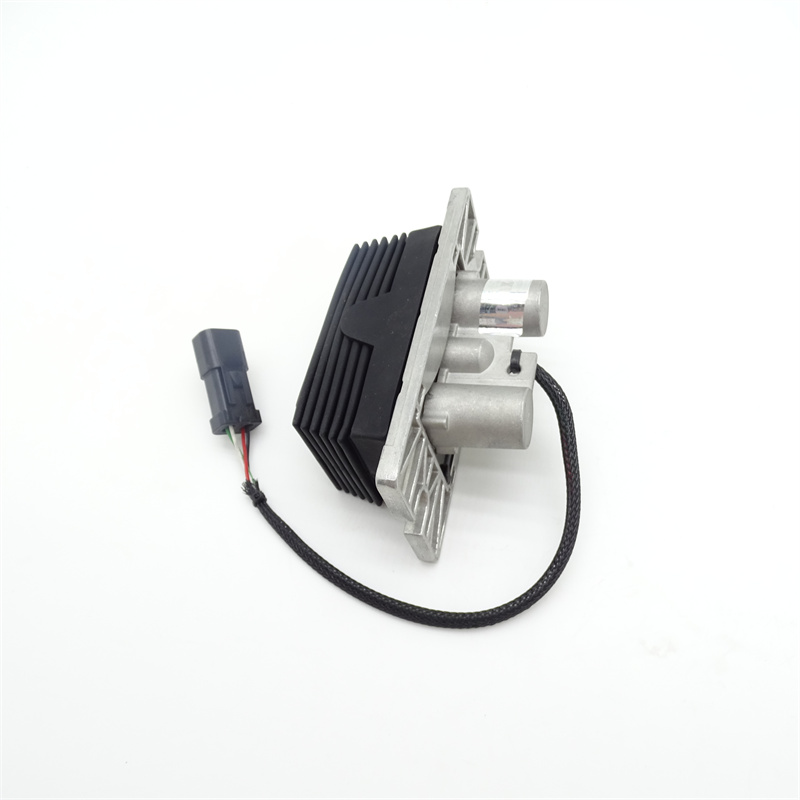

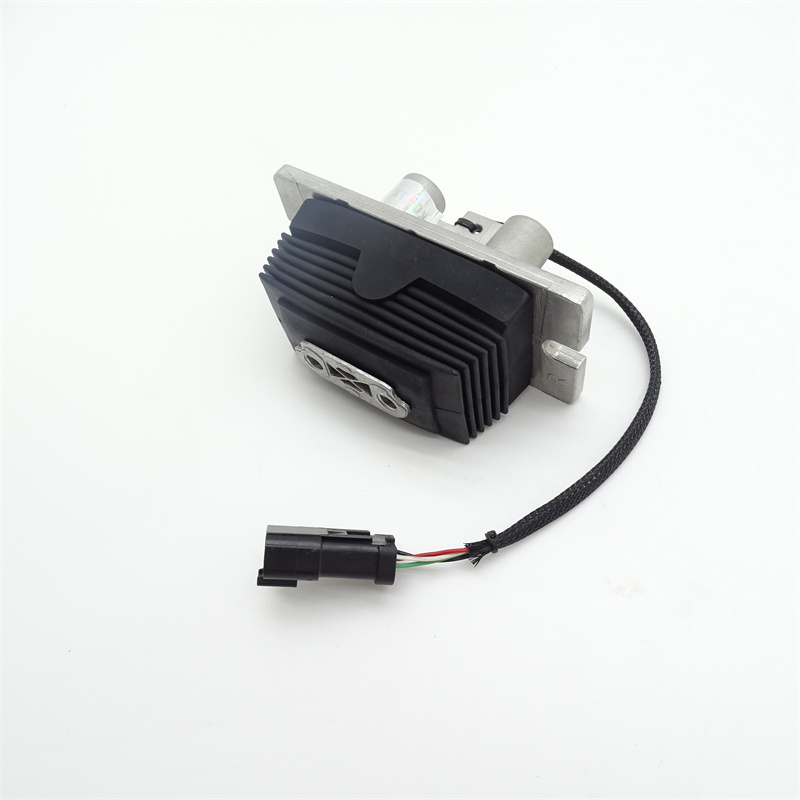

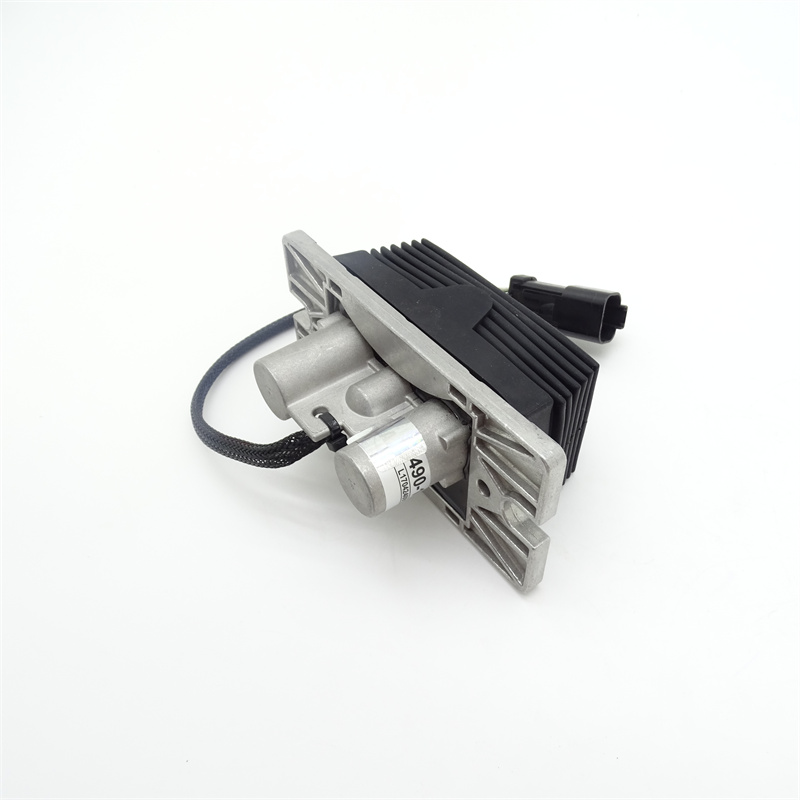

Gallery
